Trident Titan Pro 06M-CB
SKU: TT-AW-0006-CB-01-31-01
Price on request
With its outstandingly high SCOP value, the Trident Titan Pro series delivers excellent energy efficiency along with stable, reliable heating and cooling performance. The unit can produce flow temperatures of up to 75 °C and operates at full heat pump capacity down to an outdoor temperature of −7 °C.
Key features
Questions about this product?
Get in touch with us.
Specifications
The Trident Titan Pro 06M-CB is a compact, inverter-driven air-to-water heat pump system suitable for heating, cooling and domestic hot water (DHW) production, complemented by a separate control unit (CB – Control Box). This version is an ideal choice for properties with lower heat demand, where flexible system design and a clearly organised plant room are essential.
Reliable performance for smaller properties
The output of the Titan Pro 06M outdoor unit is particularly well matched to the needs of smaller, well-insulated modern family homes, terraced houses or holiday homes with lower heat demand. The system delivers stable heating output even at low outdoor temperatures, while in summer mode its efficient cooling function ensures a comfortable indoor climate.

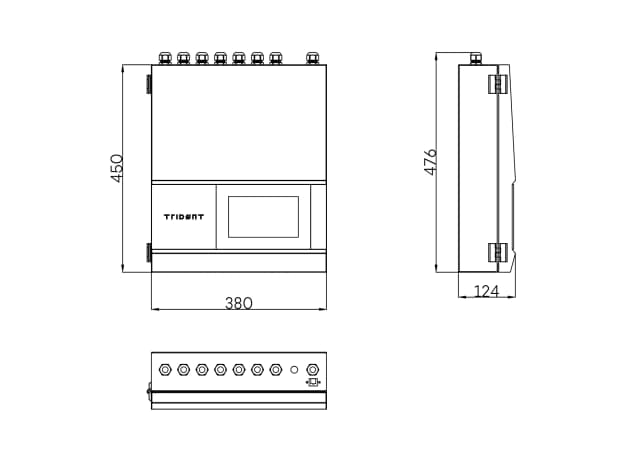

CB (Control Box) – flexible control, straightforward system design
In the CB version, the heat pump's controls are housed in a separate, wall-mounted control unit. This makes it possible to:
- position the controller optimally within the plant room,
- maintain and service the system more easily,
- integrate an external buffer tank or separate DHW tank with ease,
- set up multiple heating circuits or zone control.
This solution is particularly advantageous when domestic hot water is not produced with an integrated tank, or when the system calls for a modular, expandable configuration.
Energy-efficient, environmentally friendly operation
The inverter technology of the Trident Titan Pro 06M-CB adapts operation to the instantaneous heat demand, reducing energy consumption and running costs. The unit uses R290 refrigerant, offering an environmentally friendly solution with high efficiency and reliable operation.
Versatile applications
With appropriate system design, the Titan Pro 06M-CB is an excellent choice for:
- underfloor heating systems,
- fan coil-based cooling,
- low-temperature radiator heating,
- systems combined with an external DHW tank.
Who is it recommended for?
The Trident Titan Pro 06M-CB is an ideal choice for those who:
- are looking for a heating and cooling solution for a smaller property,
- want a flexibly configurable heat pump system with a separate control unit,
- value energy-saving, environmentally friendly technology.
The CB version is especially recommended when the property's mechanical installation requires a bespoke layout, and a transparent system architecture that remains easy to service over the long term is a priority.
Basic data
| Model | Trident Titan Pro 06M - monobloc outdoor unit |
|---|---|
| Article number | TT-SU-0006-MB-01-31-01 |
Key features
| Heat pump energy efficiency class - W35°C / W55°C | A+++ / A+++ |
|---|---|
| SCOP - 35°C / 55°C | 5.18 / 3.91 |
| SEER - 18°C / 7°C | 6.71 / 4.25 |
| Annual energy consumption - heating (35°C/55°C) | 2275 kWh / 2979 kWh |
| Rated heat output (Prated) (35°C/55°C) | 5.70 kW / 5.64 kW |
| Maximum heat output (35°C/55°C) | 6.43 kW / 5.70 kW |
| Seasonal space heating efficiency (ηs) (35°C/55°C) | 204 % / 153 % |
Heat outputs
| Heating capacity A7/W35 (min/max) | 2.10 kW / 6.40 kW |
|---|---|
| Heating capacity A2/W35 (min/max) | 3.04 kW / 6.08 kW |
| Heating capacity A-7/W35 (min/max) | 2.09 kW / 6.15 kW |
| Cooling capacity A35/W18 (min/max) | 3.66 kW / 7.44 kW |
| Cooling capacity A35/W7 (min/max) | 2.47 kW / 5.94 kW |
| Heating capacity (A7/W35) | 6.43 kW |
| Electrical power input (A7/W35) | 1.22 kW |
| COP (A7/W35) | 5.28 |
| Heating capacity (A7/W55) | 5.70 kW |
| Electrical power input (A7/W55) | 1.71 kW |
| COP (A7/W55) | 3.37 |
| Heating capacity (A2/W35) | 6.08 kW |
| Electrical power input (A2/W35) | 1.64 kW |
| COP (A2/W35) | 3.69 |
| Heating capacity (A2/W55) | 5.98 kW |
| Electrical power input (A2/W55) | 2.23 kW |
| COP (A2/W55) | 2.69 |
| Heating capacity (A-7/W35) | 6.15 kW |
| Electrical power input (A-7/W35) | 2.11 kW |
| COP (A-7/W35) | 2.90 |
| Heating capacity (A-7/W55) | 5.22 kW |
| Electrical power input (A-7/W55) | 2.55 kW |
| COP (A-7/W55) | 2.05 |
| Heating capacity (A-15/W35) | 5.71 kW |
| Electrical power input (A-15/W35) | 2.12 kW |
| COP (A-15/W35) | 2.70 |
| Heating capacity (A-15/W55) | 5.01 kW |
| Electrical power input (A-15/W55) | 2.52 kW |
| COP (A-15/W55) | 1.99 |
| Cooling capacity (A35/W18) | 7.44 kW |
| Electrical power input (A35/W18) | 1.83 kW |
| EER (A35/W18) | 4.07 |
| Cooling capacity (A35/W7) | 5.94 kW |
| Electrical power input (A35/W7) | 1.75 kW |
| EER (A35/W7) | 3.39 |
| Max. heating capacity in quiet mode (A-7/W35) | 6.15 kW |
| Max. heating capacity in quiet mode (A-7/W55) | 5.23 kW |
| Max. cooling capacity in quiet mode (A35/W18) | 7.44 kW |
| Max. cooling capacity in quiet mode (A35/W7) | 5.94 kW |
At operating points with an outdoor temperature of 2 °C or below (A2, A-7, A-15), the heating data is given without the defrost cycle included.
Performance data
| Refrigerant | R290 |
|---|---|
| Refrigerant charge | 0.85 kg |
| Compressor type | Twin rotary |
| Compressor manufacturer | GMCC |
| Compressor oil | POE |
Electrical data
| Rated voltage of outdoor unit | 230 V |
|---|---|
| Recommended fuse for outdoor unit | 1 x B 16 A |
Hydraulic data
| Heat exchanger type | Plate heat exchanger |
|---|---|
| Heat exchanger manufacturer | Alfa Laval |
| Water-side pipe connection | G1" male thread |
| Nominal flow rate | 1.03 m³/h |
| Min. / max. flow rate | 0.72 / 1.34 m³/h |
| Internal pressure drop at nominal flow rate | 18 kPa |
| Circulation pump manufacturer | Grundfos |
| Circulation pump type | UPM4XL K 25-90 130 |
Heat source data
| Number of fans | 1 |
|---|---|
| Fan air flow rate | 2850 m³/h |
Operating limits
| Outdoor temperature operating range | −25 / 43 °C |
|---|---|
| Heating water temperature (min/max) | 25 / 75 °C |
| Cooling water temperature (min/max) | 7 / 20 °C |
| Min. / max. operating pressure | 0.8 / 3 bar |
Weight data
| Weight | 100 kg |
|---|
Dimensions
| Width | 1160 mm |
|---|---|
| Depth | 395 mm |
| Height | 740 mm |
Noise level
| Sound power level (EN 12102) | 49 dB(A) |
|---|---|
| Max. sound power level at operating limits | 64 dB(A) |
| Max. sound power level in reduced night mode | 42 dB(A) |
