Monoblock

Trident Titan Pro 20M‑CB

Indoor unit

3D
Betöltés...

Outdoor unit

3D
Betöltés...
Trident Titan Pro 20M-CB - Indoor unit technical drawing

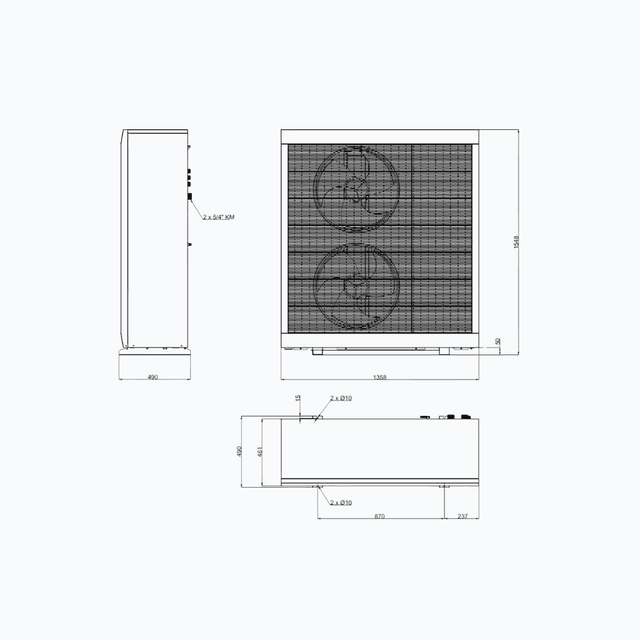

Trident Titan Pro 20M-CB - Outdoor unit technical drawing
Trident Titan Pro 20M-CB - Energy label
  • Up to 10 years full warranty
  • Free remote monitoring service
  • 3 years of free maintenance

Trident Titan Pro 20M-CB

SKU: TT-AW-0020-CB-01-33-01

Price on request

With its outstandingly high SCOP value, the Trident Titan Pro series delivers excellent energy efficiency along with stable, reliable heating and cooling performance. The unit can produce flow temperatures of up to 75 °C and operates at full heat pump capacity down to an outdoor temperature of −7 °C.

Key features

Heating capacity:20.4 kW
Cooling capacity:18.3 kW
Power supply:380 V
Refrigerant:R290
SCOP:5.1
Request a quoteDownload datasheet

Questions about this product?
Get in touch with us.

Specifications

The Trident Titan Pro 20M-CB is a high-output, inverter-driven air-to-water heat pump system suitable for heating, cooling and domestic hot water (DHW) production, complemented by a separate control unit (CB – Control Box). This version provides maximum flexibility during system planning and installation, especially for more complex mechanical solutions.

High output, stable operation

The Titan Pro 20M outdoor unit is specifically suited to serving family homes with medium and higher heat demand, apartment buildings, and smaller commercial or industrial buildings. The system delivers reliable heating output even at low outdoor temperatures, while in summer mode its efficient cooling function ensures proper indoor comfort.

CB (Control Box) – flexible control, transparent system

In the CB version, the heat pump's controls are housed in a separate, wall-mounted control unit. This makes it possible to:

  • position the controls optimally within the plant room,

  • maintain and service the system more easily,

  • integrate more complex hydraulic systems (external buffer tank, separate DHW tank, zone control) more simply.

The CB solution is an ideal choice when the system does not operate with an integrated DHW tank, or when domestic hot water is produced with a separate storage tank.

Energy-efficient, environmentally friendly technology

The inverter-driven operation of the Trident Titan Pro 20M-CB adapts output to the current heat demand, reducing energy consumption and running costs. The unit uses R290 refrigerant, which ensures a low environmental impact while offering high efficiency and reliable operation.

Versatile applications

With appropriate system design, the Titan Pro 20M-CB is an excellent choice for:

  • underfloor heating systems,

  • fan coil-based cooling,

  • low- and medium-temperature radiator heating,

  • systems combined with an external DHW tank.

Who is it recommended for?

The Trident Titan Pro 20M-CB is an ideal choice for those who:

  • are looking for a higher-output, modularly expandable heat pump system,

  • want to build their mechanical installation around a separate control unit,

  • are planning a more complex heating, cooling and DHW system for a family home, apartment building or smaller business property.

The CB version is especially advantageous when the system requires a flexible architecture tailored to individual needs, and an installer-friendly solution that remains easy to manage over the long term is a priority.
